100C & 200C Solenoid Coils

100C & 200C Solenoid Coils

SKU: 100C & 200C
Model100C200C2W200C2WO250C2W350C
Coil Insulation & Protection ClassF Class, IP 65F Class, IP 65H Class, IP 65H Class, IP 65H Class, IP 65
Coil Duty Cycle100%ED100%ED100%ED100%ED100%ED
DIN Electrical ConnectionDIN 43650C (with LED Indicator)

Strain Relief Connection use 6mm to 1/4" cable

Option: 1/2" Female NPT
Conduit Connection
DIN 43650B (PG 9) (with LED Indicator)

Strain Relief Connection use 6mm to 1/4" cable

PG 9 (Standard)
Option: 1/2" Female NPT
Conduit Connection
DIN 43650A (with LED Indicator)

Strain Relief Connection use 6mm to 8mm - 5/16" cable

PG 11 (Standard)
Option: 1/2" Female NPT
Conduit Connection
DIN 43650A (PG 11) (with LED Indicator)

Strain Relief Connection use 6mm to 8mm - 5/16" cable

PG 11 (Standard)
Option: 1/2" Female NPT
Conduit Connection
DIN 43650A (PG 11) (with LED Indicator)

Strain Relief Connection use 6mm to 8mm - 5/16" cable

PG 11 (Standard)
Option: 1/2" Female NPT
Conduit Connection

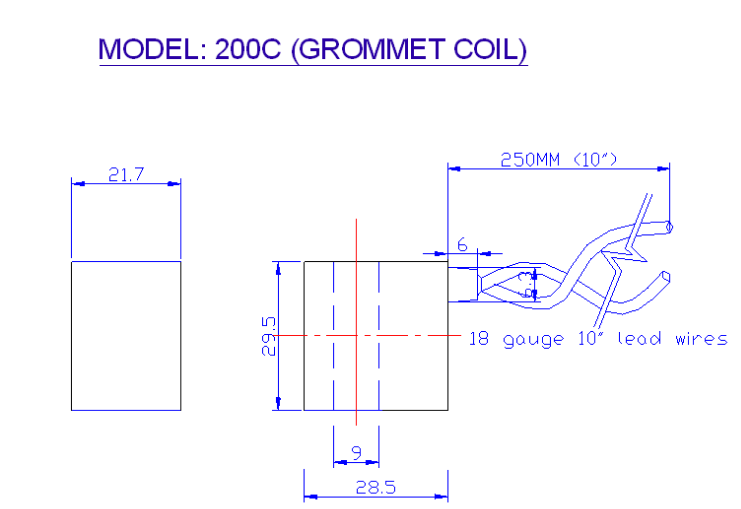

Grommet Electrical ConnectionG = Grommet (12" Lead Wire)G = Grommet (12" Lead Wire)N/AN/AN/A
Power Consumption2.5 Watt (Holding), Inrush 160% for AC Power Supply3 to 6.5 Watt (Holding), Inrush 160% for AC Power Supply12 to 20 Watt (Holding), Inrush 160% for AC Power Supply25 to 40 Watt (Holding), Inrush 160% for AC Power Supply25 to 40 Watt (Holding), Inrush 160% for AC Power Supply
Ambient Temperature-30°C to 70°C-30°C to 70°C-20°C to 50°C-20°C to 50°C-20°C to 50°C
CertificationCE CertificationCE Certification

Options: UL, CSA;
FM (Explosion Proof)
CE Certification

Options: ATEX
(Explosion Proof)
CE CertificationCE Certification
  • Installation Instructions

    • CAUTION: Do no energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.

    • To Connect a DIN Coil:

      • Remove the Philips screw from the plastic housting & unplug from the DIN coil.
      • Use the removed screw to push the terminal block out of the plastic DIN housing.
      • Note the "1", "2", and ground "⏚" symbols.
        • For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
        • For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.

    • To Connect a Grommet Coil:

      • For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
      • For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
      • For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
        • GREEN = Ground Wire
        • BLUE = Positive or HOT Wire
        • BROWN = Negative or Neutral Wire
