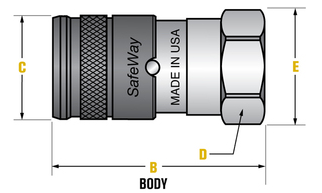

SF49 Female Body Half (Socket) (Stainless)
SKU: SF49 FEMALE
The SF49 Series quick couplings provide rugged-flush-face valving for non-spill dry breaks and allows one-hand push-to-connect with safety sleeve-lock standard. The 3/8" size meets HTMA dimensional standards while providing significantly higher pressure containment than other brands (10,000 operating psi). The 3/4" SF49-6 are SF49-6-12 are rated at 6,000 operating psi and have a significantly smaller foot-print than other brands. Ideally suited for use in hydraulic hand tools, overhead bucket hoists, skid-steer loaders, and wherever spillage can constitute a safety or environmental hazard.
Product Information
Product Material Valve Type Description Thread Maximum Operating Pressure (psi) ISO Body Size (in) Seal Material SF495-3 Steel Poppet (O-ring Seal) Body Half 3/8 Female Pipe 10,000 3/8 Nitrile (Buna-N) SF495-3-1/2 Steel Poppet (O-ring Seal) Body Half 1/2 Female Pipe 10,000 3/8 Nitrile (Buna-N) SF495-3-1/2F Steel Poppet (O-ring Seal) Body Half 1/2 Female Pipe 10,000 3/8 Viton® SF495-3-8 Steel Poppet (O-ring Seal) Body Half 3/4-16 Female ORB 10,000 3/8 Nitrile (Buna-N) SF495-3-8F Steel Poppet (O-ring Seal) Body Half 3/4-16 Female ORB 10,000 3/8 Viton® SF495-3F Steel Poppet (O-ring Seal) Body Half 3/8 Female Pipe 10,000 3/8 Viton® SF495-3M Steel Poppet (O-ring Seal) Body Half 3/8 Male Pipe 10,000 3/8 Nitrile (Buna-N) SF495-3MF Steel Poppet (O-ring Seal) Body Half 3/8 Male Pipe 10,000 3/8 Viton® SF495-3 Stainless Steel Poppet (O-ring Seal) Body Half 3/8 Female Pipe 3,000 3/8 Viton® SF495-6 Steel Poppet (O-ring Seal) Body Half 3/4 Female Pipe 6,000 3/4 Nitrile (Buna-N) SF495-6-12 Steel Poppet (O-ring Seal) Body Half 1-1/16-12 Female ORB 6,000 3/4 Nitrile (Buna-N) SF495-6-12F Steel Poppet (O-ring Seal) Body Half 1-1/16-12 Female ORB 6,000 3/4 Viton® SF495-6F Steel Poppet (O-ring Seal) Body Half 3/4 Female Pipe 6,000 3/4 Viton®
